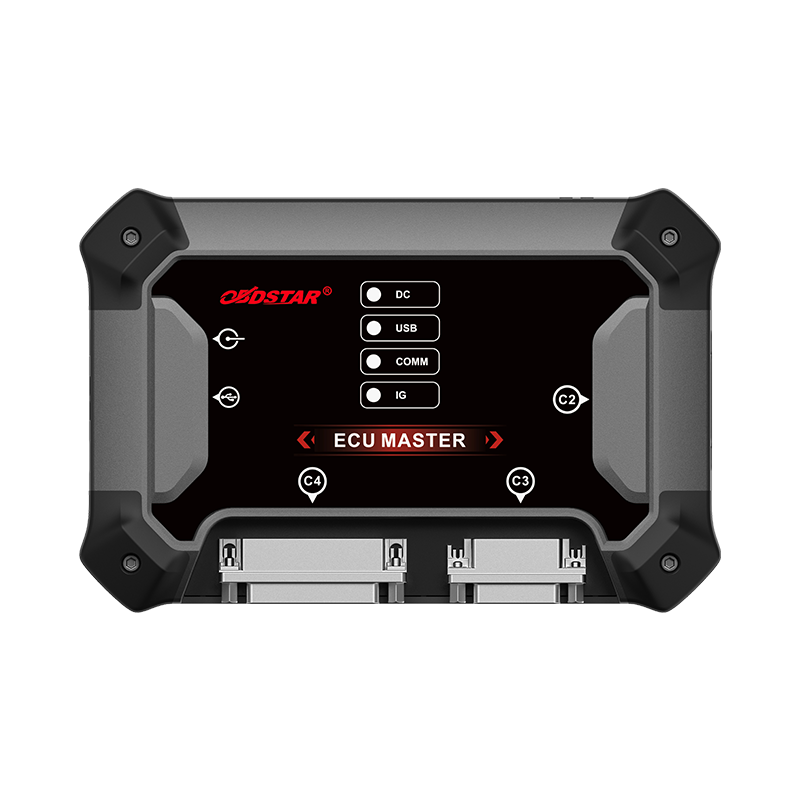

OBDSTAR ECU Master Configuration C for HD Truck & Tractor ECM TCM BCM Clone

1. for HD ECM TCM BCM.
2. 1 year free update.

ECU MASTER Configuration C is the first professional PC-based ECU Flasher for OBDSTAR and supports HD heavy duty truck (ECM/TCM/BCM) clone functions. It is compatible with ECUs from major global brands, provides precise maintenance for popular units, and is equipped with anti-misoperation reminders, allowing even beginners to get started quickly!

1 year free update. $299 per year later.

HD ECM/TCM/BCM Cloning:

Supports major global commercial vehicle brands:

TRUCK:

MERCEDES-BENZ, VOLVO, SCANIA, MAN, IVECO, ISUZU, MITSUBISHI FUSO, FAW, FORD etc.

TRACTOR/ OHW(OFF-HIGHWAY VEHICLES/ MACHINERY):

JOHN DEERE, CNH INDUSTRIAL, KUBOTA, YANMAR etc.

Support global HD ECU brands:

BOSCH, DENSO, CONTINENTAL, DELPHI, SIEMENS, CUMMINS, WABCO, ZF etc.

Supports ECU Advanced functions:

VlN Read/ Write, Virgin Reset, Mileage Calibration, CheckSum, MAPS Read/ Write, ECU Lock/ Unlock, IMMO OFF/ ON etc.

OBDSTAR ECU Master HD ECM BCM TCM coverage 202605

Download ECU Master PC software

OBDSTAR ECU Master User Manual

HD:

1. Support MB BENZ PLD(MR) series (MR-A2, MR-A3, MR-A4, MR-A5, MR-A6, MR-A7, MR-A8) ECU Cloning function via BENCH/BOOT mode.

2. Support MB BENZ ACM2, ACM2.1, ACM2.2 ECU Cloning function via BENCH mode.

3. Support MB BENZ ADM2, ADM3 ECU Cloning function via BENCH mode.

4. Support MB BENZ MCM2, MCM2.1 D2, MCM2.1 D3, MCM2.1 D4, MCM2.1 D5 ECU Cloning via BENCH/BOOT mode, Lock/Unlock ECU and Read/Write VIN.

5. Support MB BENZ CPC/FR, CPC3, CPC4 , CPC5 ECU Cloning function via BENCH mode.

6. Support MB BENZ BOSCH, FESTO, WABCO MP4 TCMs ECU Cloning and Read/Write functions via BENCH mode.

7. Support MB BENZ EBS4(WABCO), EBS4+(WABCO), EBS5(BOSCH) ECU Cloning function via BENCH mode.

8. Support MAN FFR, PTM, EDC7C3, EDC7C32 ECU Cloning function via BENCH/JTAG/BDM mode.

9. Support SCANIA EMS S6, EMS S7, EMS S8, EMS EMD1, EGC4, EEC3, COO7, COO8, OPC5 ECU Cloning function via BENCH/JTAG mode.

10. Support MB BENZ/DAF/IVECO/HYUNDAI/MAN GS3.0, GS3.3, GS3.6 TCMs ECU Cloning function via BENCH/BOOT mode.

11. Support VOLVO EMS2.2, EMS2.3, EMS2.4 ECU Cloning function via BENCH mode.

12. Support CUMMINS CM1880A, CM1881, CM2150E, CM2220A, CM2350A, CM2150C, CM2220C, CM2880, CM871, CM2220B, CM2200A Read/Write VIN function via BENCH mode.

OBDSTAR ECU Master vs DC706:

1. ECU Master is PC-based; DC706 is standalone.

2. ECU Master offers optional airbag and heavy-duty modules; DC706 does not.

3. ECU Master includes MP001, P003 and CAN FD built-in; DC706 requires separate purchase.

Recent Update:

August 2026

Supports unlocking diesel encrypted MD1 ECUs (requires C4-06 adapter)

ISUZU BOSCH MD1CS089 TC299TP (ECU MASTER C)

LDV BOSCH MD1CS089 TC299TP (ECU MASTER C)

DEUTZ BOSCH MD1CS089 TC299TP (ECU MASTER C)

SAME BOSCH MD1CS089 TC299TP (ECU MASTER C)

LAMBORGHINI TRATTORI BOSCH MD1CS089 TC299TP (ECU MASTER C)

Coming Soon:

IVECO BOSCH MD1CS069 TC299TP (ECU MASTER C)

MAN BOSCH MD1CE100 TC299TP (ECU MASTER C)

IVECO BOSCH MD1CE101 TC299TP (ECU MASTER C)

IVECO BOSCH MD1CE102 TC299TP (ECU MASTER C)

NOTE: Requires RH850/V850 adapter kit(C4-06 adapter).

Adds EDC17CV54 EDC17CV52 EDC17CV56 EDC7UC31 CM2150E CM2220A EDC17C87 CM1881A DCU15 CM2100A etc HD ECUs in May 2026. (check detailed update)
