SCANMATIC 3

Scanmatik 3 is the latest professional tool for diagnostics and reprogramming.

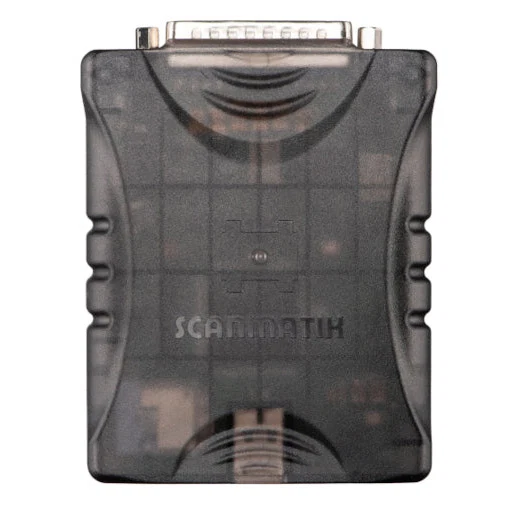

The Scanmatik SM3 adapter is the successor to the SM2Pro adapter, featuring CAN-FD and DoIP protocols. It offers the most comprehensive support for standard SAE J2534-1/2 functions, TMC RP1210 and DPDU API (ISO22900-2) required by original equipment manufacturer (OEM) vehicle diagnostics and reprogramming software, as well as by vehicle tuning and ECU flashing software such as PCMflash, BitBox, Combiloader, MDFlasher, etc. Exclusive features have been implemented for specific programmes to expand vehicle and function coverage (ignition state emulation (VAG ODIS), KLINE multiplexing (MB-DAS), etc.). J1850 VPW/PWM and Chrysler SCI interfaces have been implemented to support older vehicle models.

THIS IS AN ORIGINAL PRODUCT SOLD BY THE EUROPEAN BRANCH OF SCANMATIK LLC (RU).

Note: Production of the SM2Pro ceased in December 2024, but it will continue to receive software and functionality updates.

Features:

• Supports USB or Wi-Fi connection to PC
• Galvanically isolated USB port
• Stable, easy-to-use Wi-Fi connection running on in-house developed Wi-Fi module firmware (no Serial Port emulation involved)
• Fully protected transceiver lines (overvoltage, short-circuit)
• Supports 24V onboard voltage (trucks and buses)
• Load dump overvoltage spike protection (withstand voltages up to 55V)
• Full support for SAE J2534-1 (V0404, V0202) and SAE J2534-2
• Full support for TMC RP1210C (heavy duty vehicles)


Specifications:

• 13X ISO-9141-2/ISO-14230-2 (K-LINE)/Chrysler SCI channels multiplexed to J1962 OBD port pins [1,2,3,6,7,8,9,10,11,12,13,14,15].
• 1X J1850 VPW/PWM Channel
• 5X CAN2.0/CAN-FD Channels multiplexed to OBD port pins 6-14, 3-11, 12H-13L or 12L-13H (polarity swap), 1-9, 2-10
• 1X Single Wire CAN (GM)
• 1x10/100BASE-TX channel (DoIP)
• Programming Voltage (FEPS) generator (5-24V) multiplexed to OBD Port pins [6, 8, 11, 12, 13, 14]
• Separate AUX output for Programming Voltage to DB-25 (requires AUX-type OBD2 cable to convert to banana-jack)
• Wireless std: IEEE 802.11b/g/n
• Working frequency 2.4GHZ(2.412 to 2.480GHz)
• Adapter dimensions (L x W x H): 97×75×22mm

Description

The device works with a personal computer, tablet or smartphone. The software for Windows and Android are included in the package. When installing the driver (included) works with third-party software made for SAE J2534 and RP1210 standards. To connect to the adapter both USB and WiFi interfaces can be used.

Package Contents:

1. SM3 Device

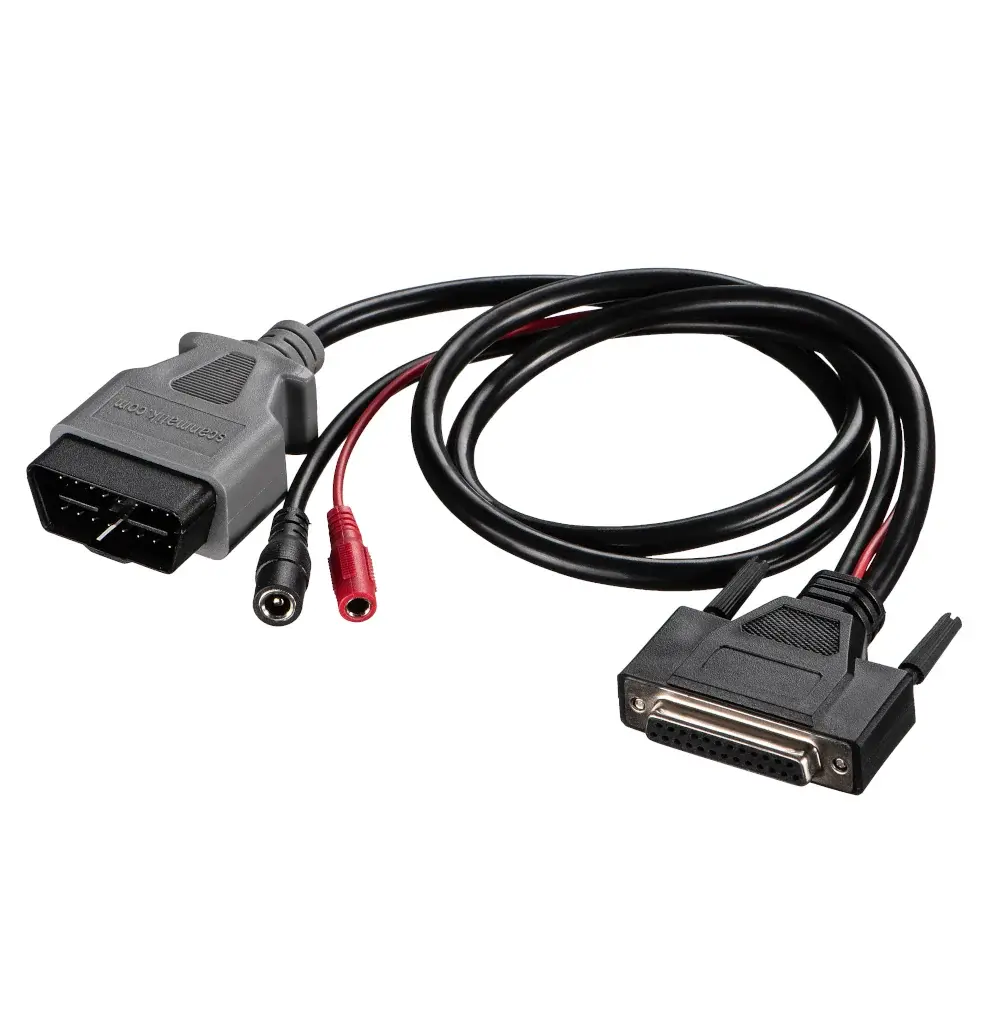

2. OBDII with AUX cable

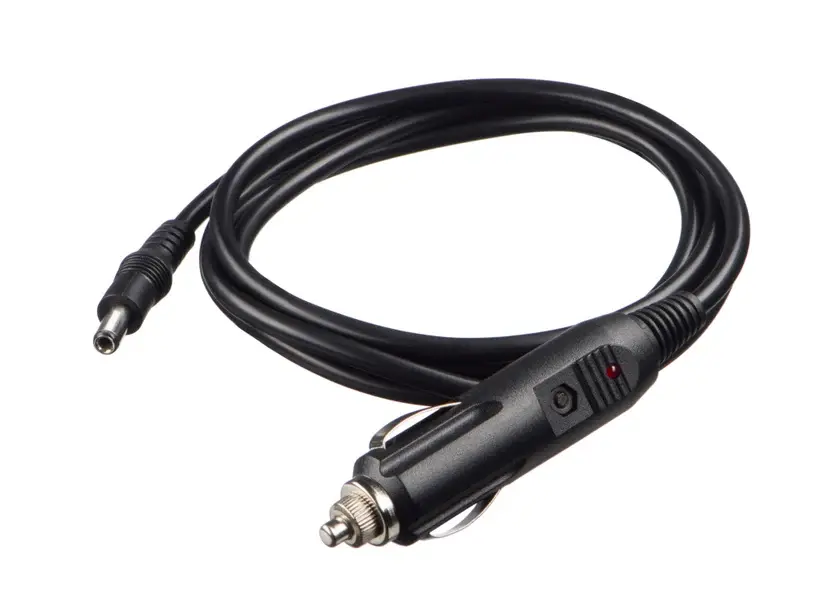

3. Lighter Cable

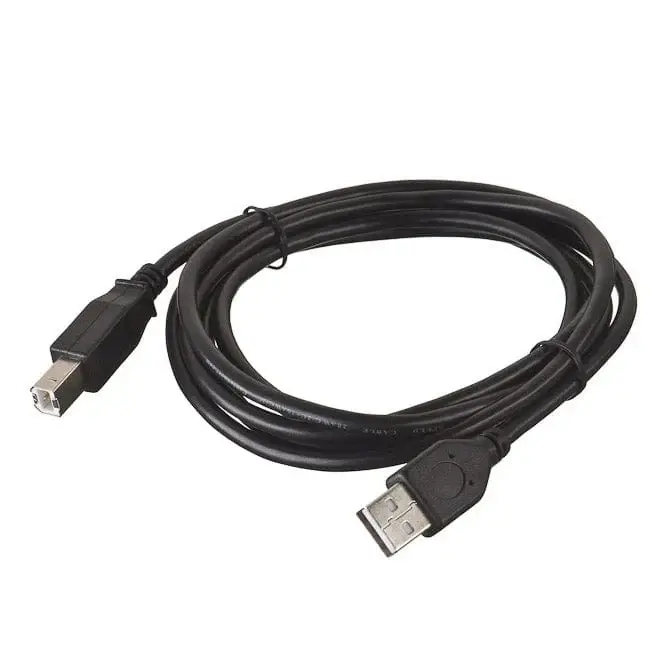

4. USB A-B Cable

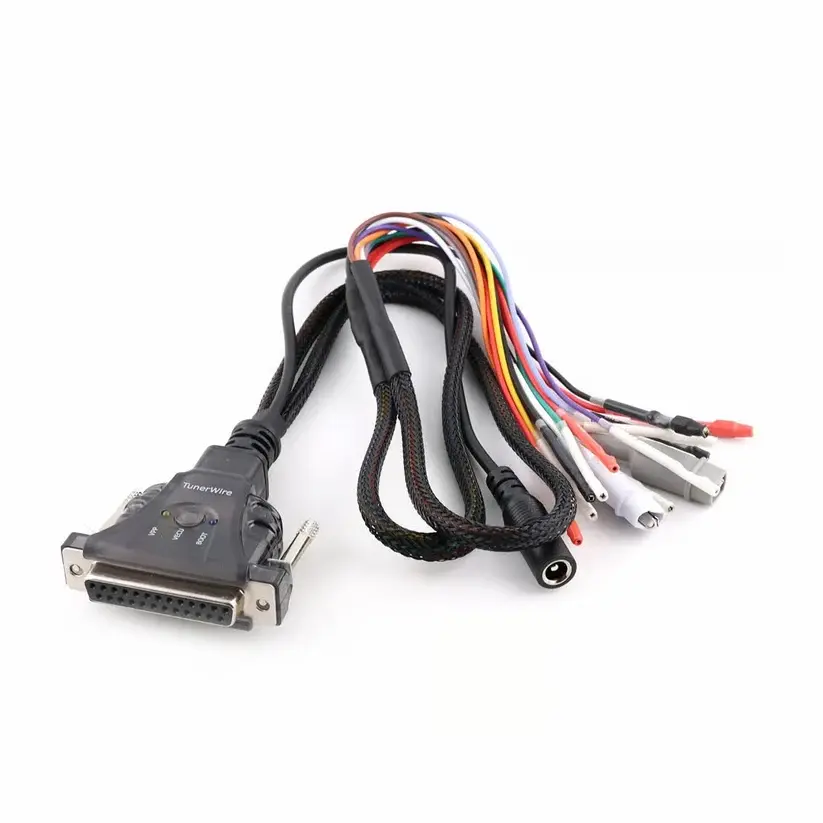

5. Scanmatik TunerWire boot/bench cable
6. Scanmatik-branded Bag (vertically handled)


Warranty:

Warranty validity terms (since purchase):
